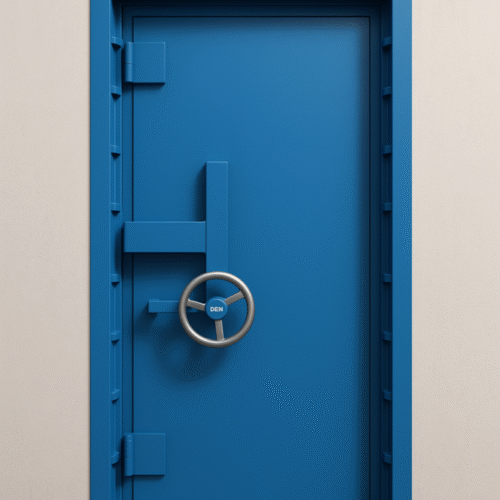

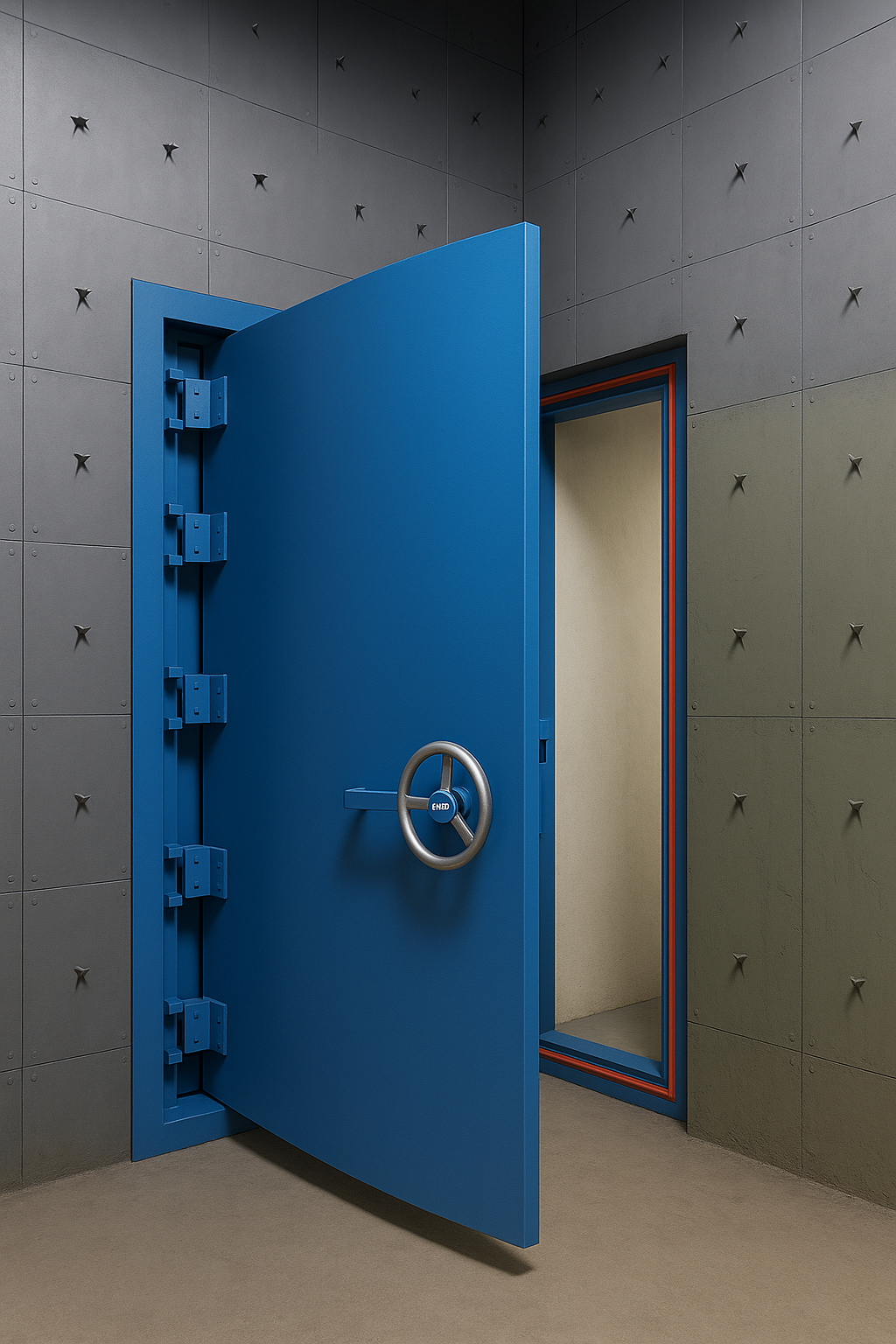

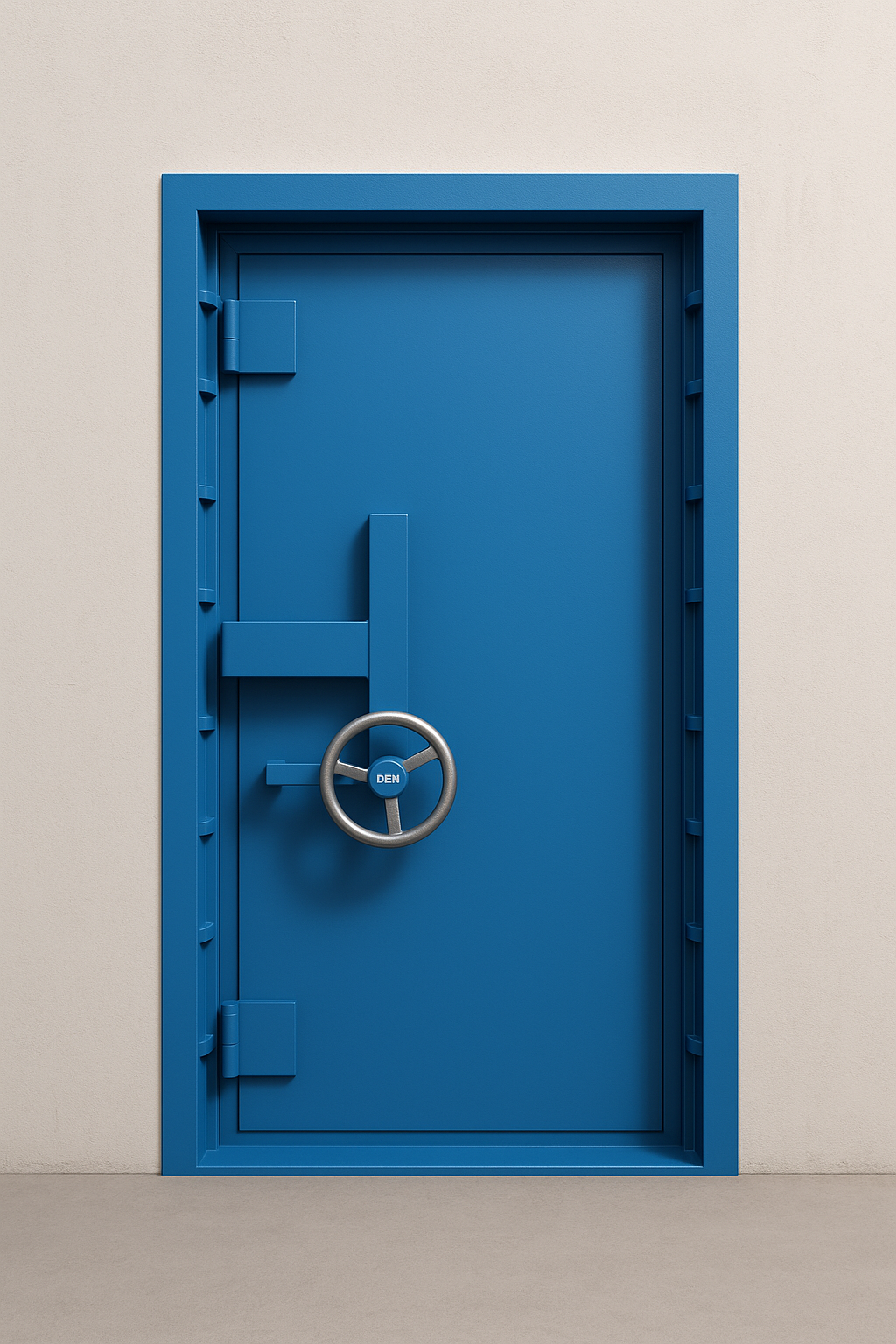

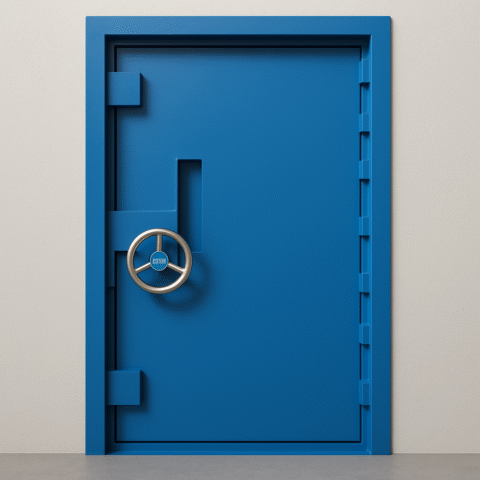

BLAST RESISTANT DOORS

Blast resistant doors - also referred to as blast proof doors - are special protective solutions to shield life and property from the disastrous effects of explosions. Designed for important areas such as compressor rooms, transformer enclosures, boilers, military facilities and other explosion-prone environments, these doors play an important role in reducing disaster effects.

Available in both single-wing and double-wing configuration, our blasts are engineered to prevent the progress of blast waves, preventing them from entering protected areas. They are able to understand the intensive explosion and provide strong protection against pellets and high-veg debris, ensuring maximum security.

SomNandi’s blast resistant doors are built to endure overpressures up to 40 bar peak reflected overpressure, with an impressive fire resistance rating of up to 180 minutes (3 hours) in accordance with BS 476 Part 20 and 22 standards. These doors can be fabricated in sizes up to 4 meters wide by 6 meters high, and custom dimensions are also available to suit project-specific requirements.

PRODUCT APPLICATIONS

  • Military Bunkers
  • Ammunition Bunkers
  • Missile Test and Launch Sites
  • Chemical and Hazardous Material Storage Rooms
  • Nuclear Power Stations
  • Petrochemical and Industrial complex
  • Bioscience and Nano Technology Research Building
  • Medicine Facilities and University Laboratories

Blast Proof Doors | SomNandi - Blast Resistant Doors Manufacturer in India

Due to the unique nature of some projects, our design team can create a specific blast door to suit the requirements of each situation. These doors can be made for electromagnetic pulse protection (EMP), ionization radiation preservation, and shield against traditional explosion.

Our products assure the highest level blast conservation under important conditions for both external and internal environments. In addition to the blast resistant doors, Somandi Industries has also designed and built a wide range of blast resistant valves manufactured by pre-engineer or tailor.

Operation can be manual or automatic by incorporating hydraulic, pneumatic or electric systems based on application. The door structure is designed with a customized transfer system that effectively emphasizes the explosion in the surrounding wall, reducing the structural effects.

To ensure airtightness and safe sealing under the explosion conditions, doors are equipped with high -performance single or multiple gasket systems, which suit clients specifications. These seals help maintain the integrity of pressure and prevent secondary hazards due to gas leaks or pressure imbalances.

Blast security requirements may not be sufficient to the pre-engineering models, due to the complex and often unique nature of the security requirements. In Somnandi Industries, our engineering and technical teams work together with clients to design fully customized blast -proof doors, their specific application, environmental obstacles and safety standards.

Secure Your Convenience With Industry-Agron Blast Resistant Doors

When security is non-pervantic, believe in the strength and reliability of our blast resistant doors. Engineers are designed for maximum protection in important environments such as our doors, defense facilities, industrial plants, research laboratories and high -risk areas to encounter high pressure effects and protect them from explosions.

In Somnandi Industries, we specialize in the manufacture of high quality blast-resistant doors, which suit industries where security and security are paramount. As one of the major Manufacturer of Blast Resistant Doors in India, our products are designed to cope with extreme forces and provide reliable security against explosions. Using advanced materials and sophisticated technology, we ensure that our explosive doors provide maximum durability and flexibility. With focus on priced engineering, we complete a wide range of industries, including oil and gas, chemical plants and government facilities, providing solutions to meet global security standards.

Choose security. Choose reliability. Choose the reliable name of India in Blast Protection Technology.

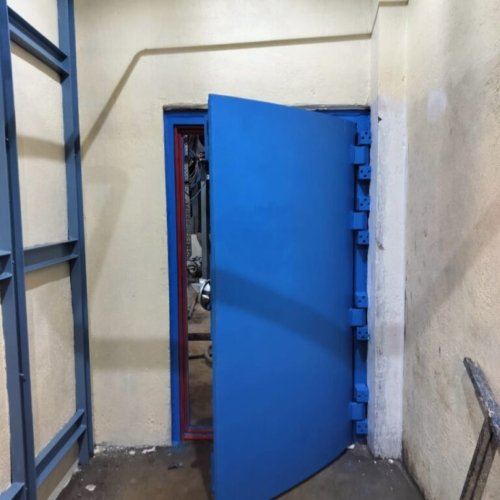

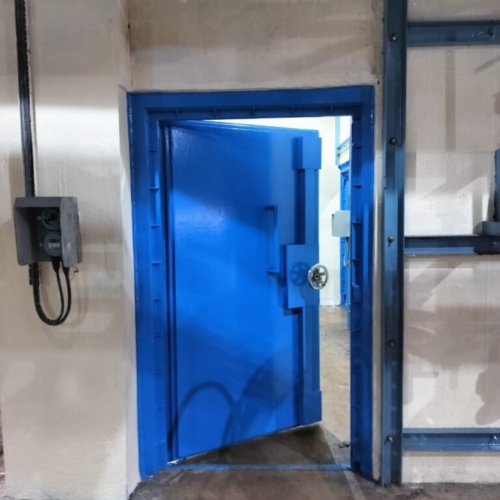

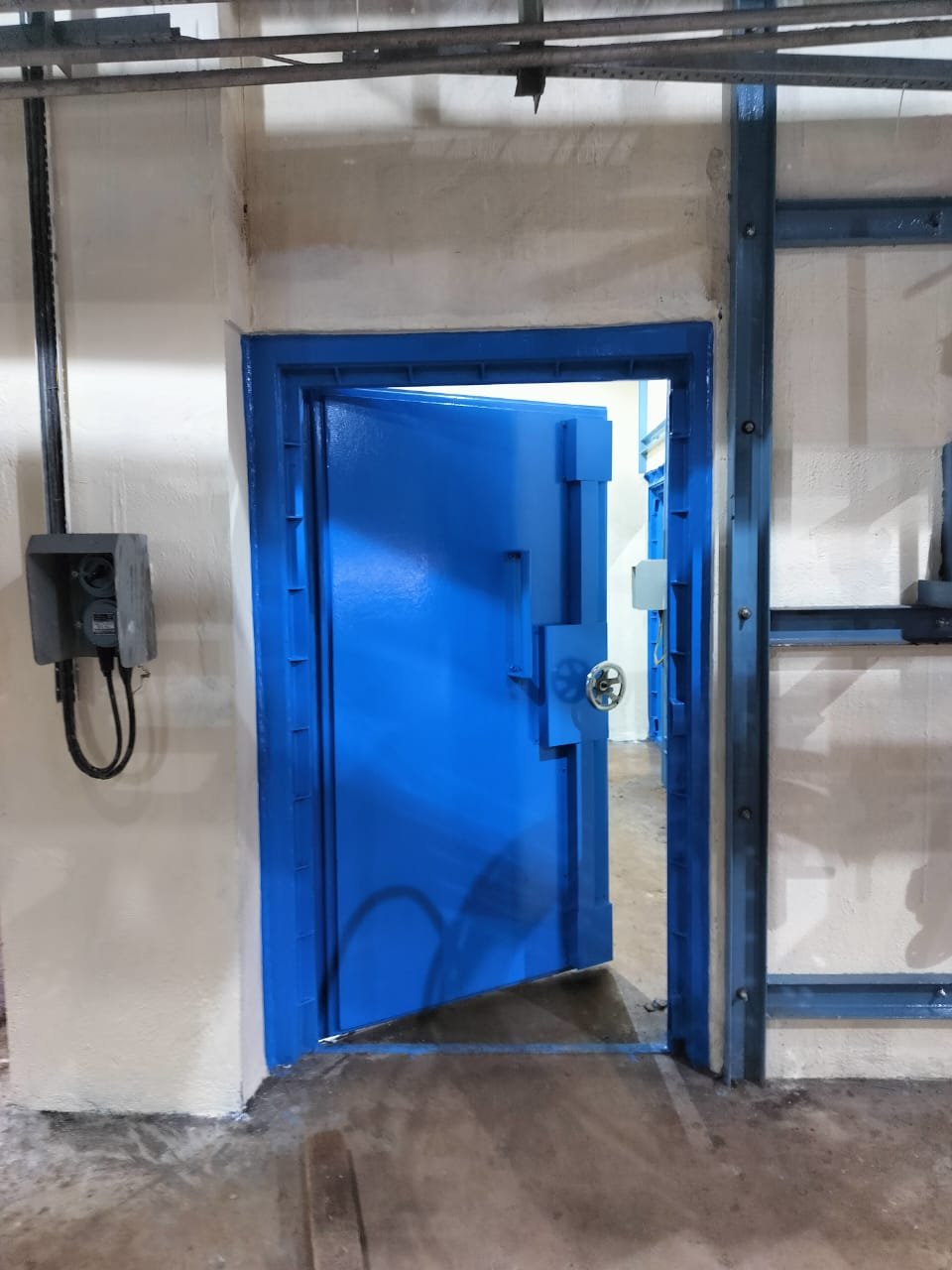

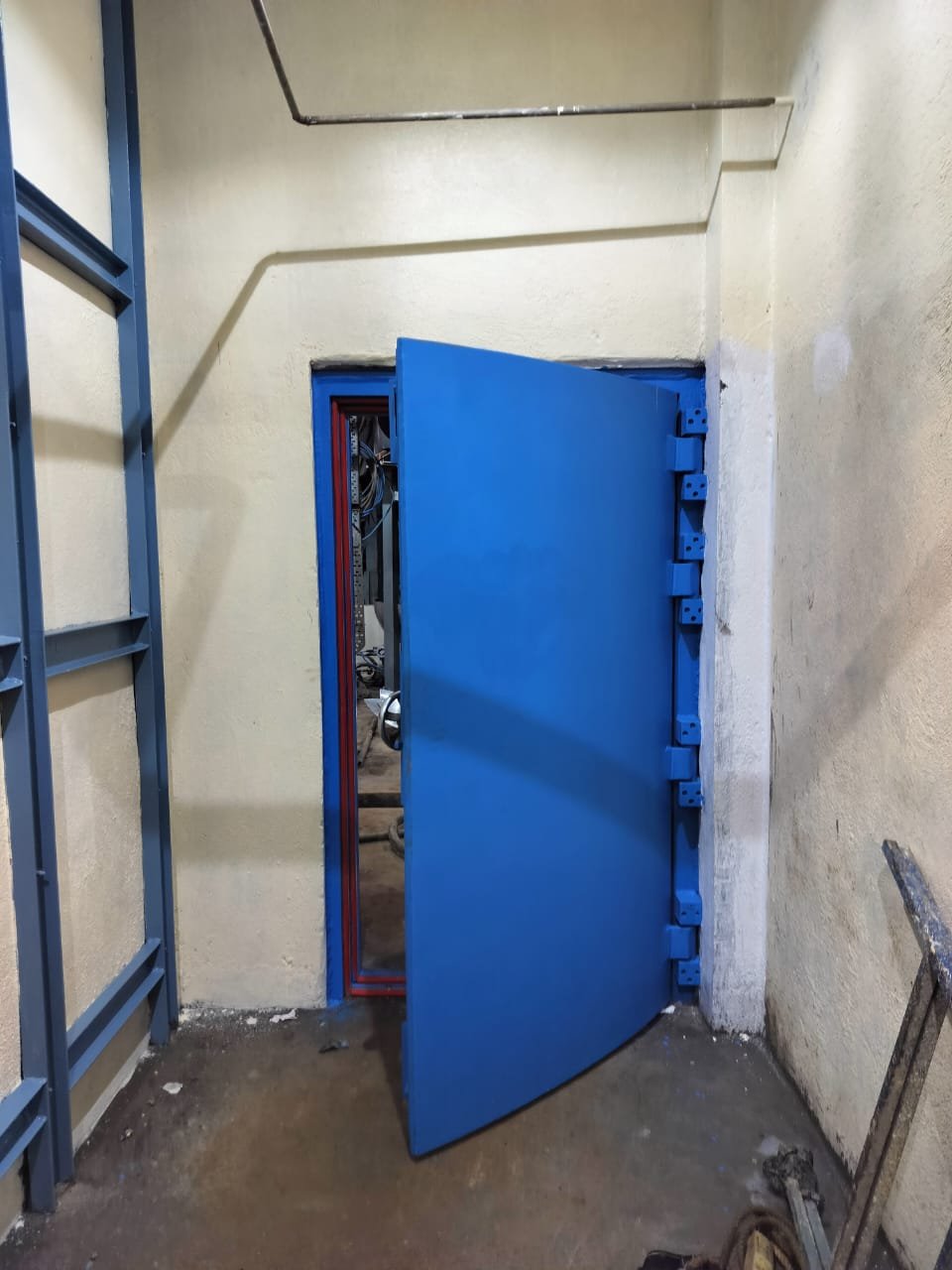

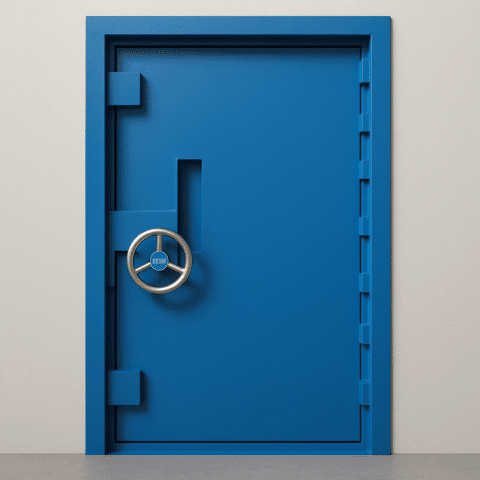

Blast Resistant Door Supplied to Laxmi Organic Industries Limited – Engineered for 24 Bar Peak Pressure

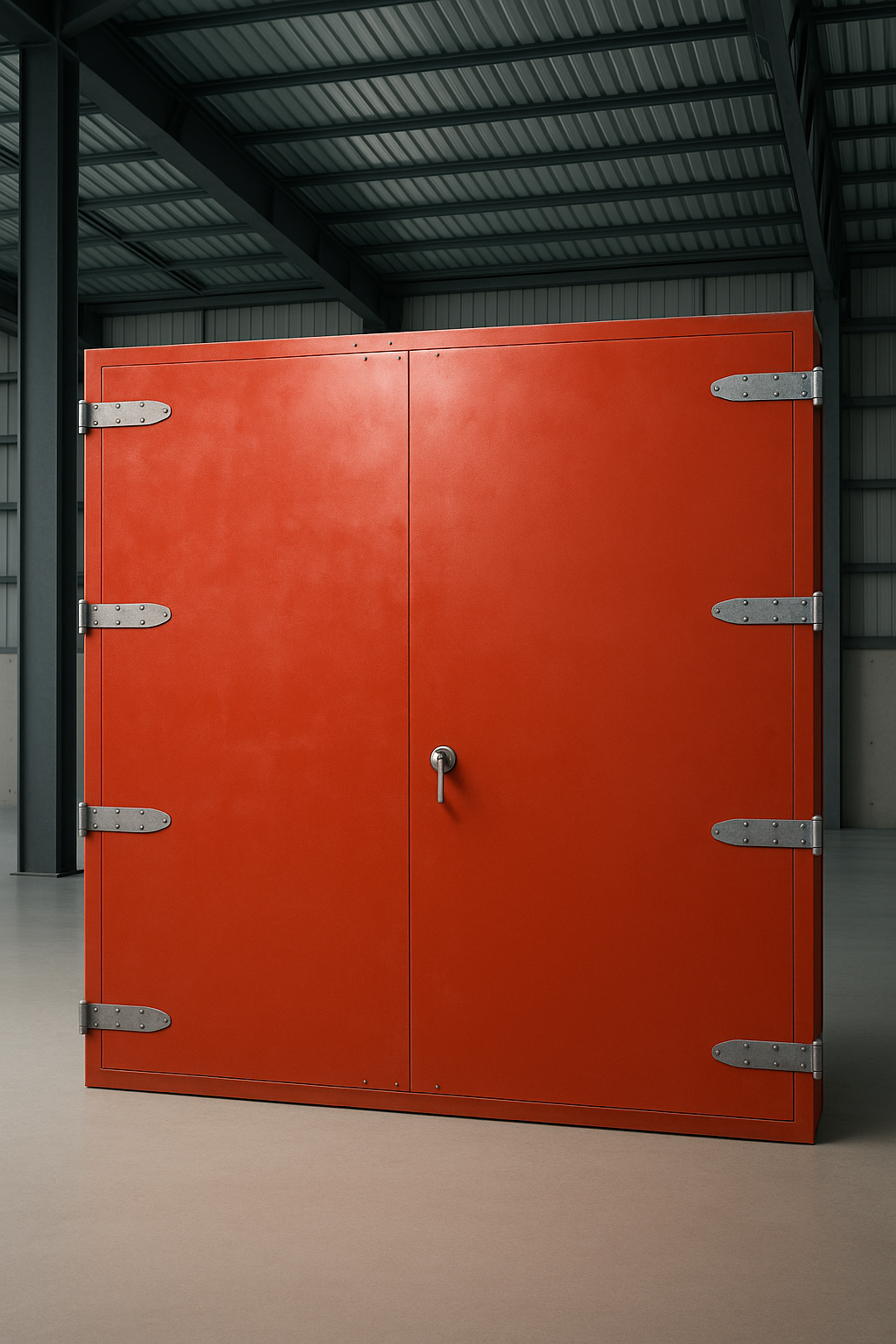

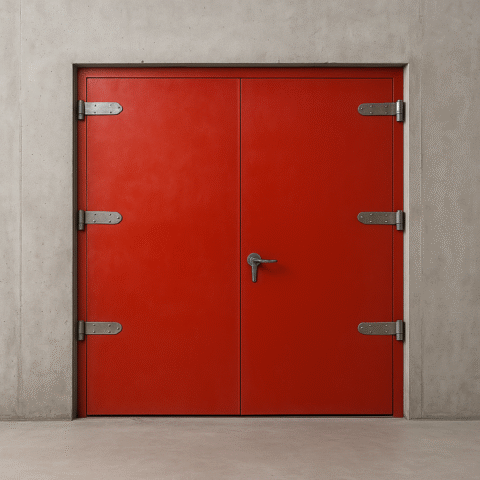

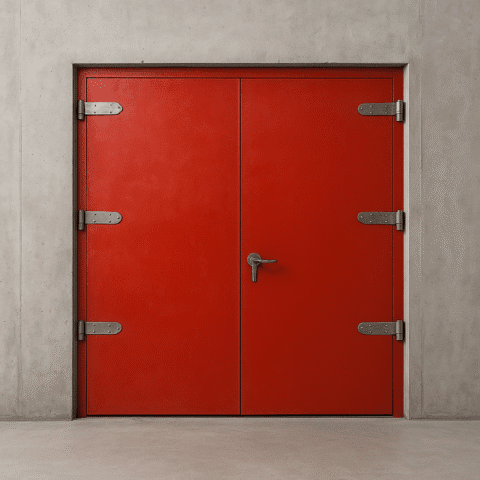

Blast Resistant Fire-Rated Double Leaf Steel Door Supplied to L&T – Blast Resistant Door Manufacturer in India

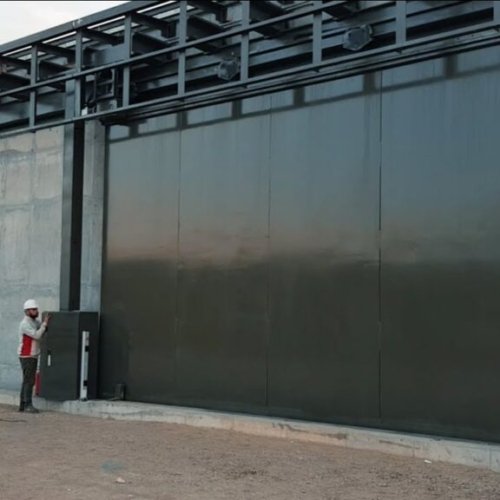

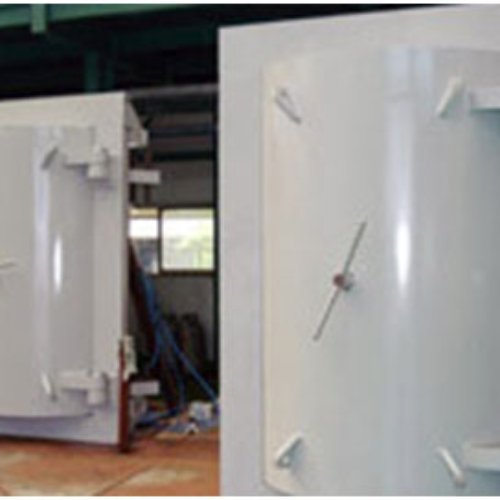

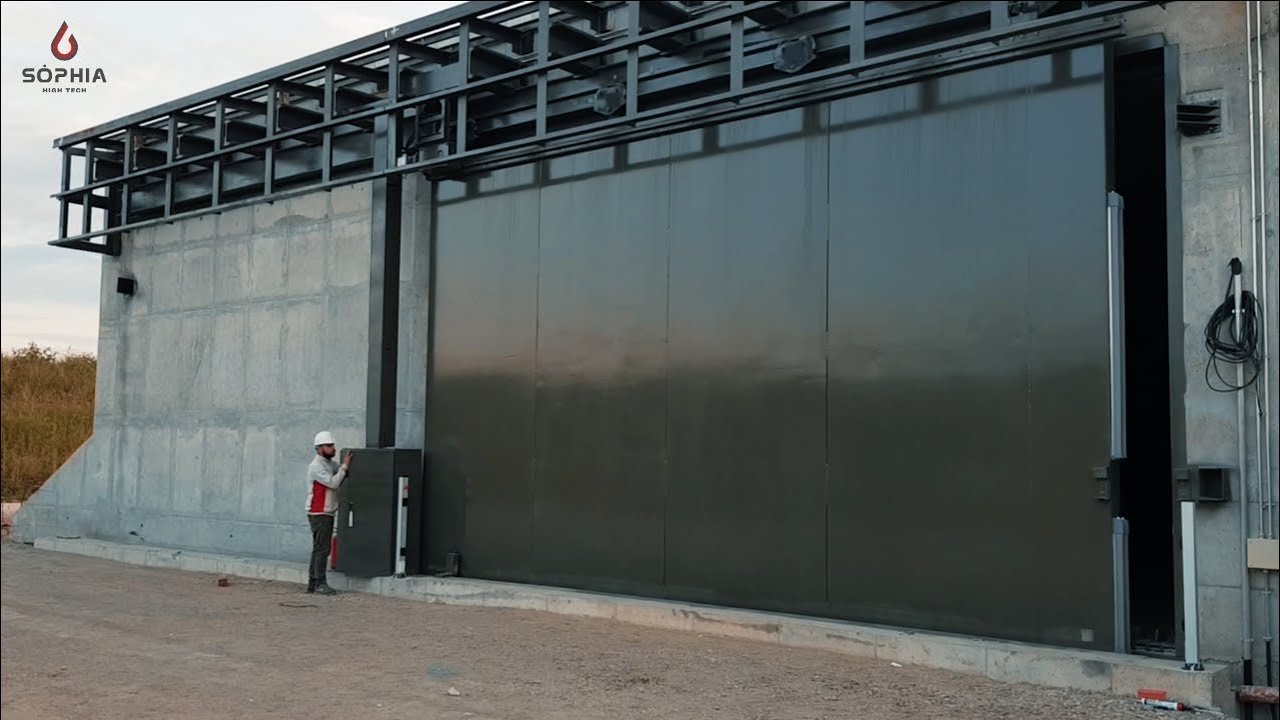

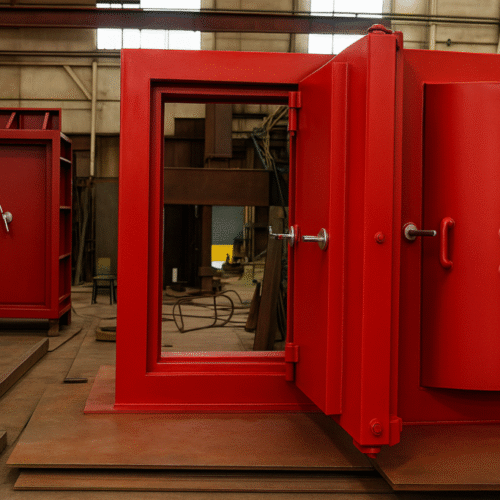

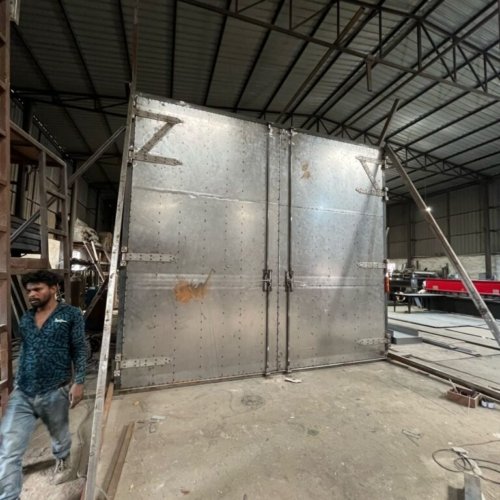

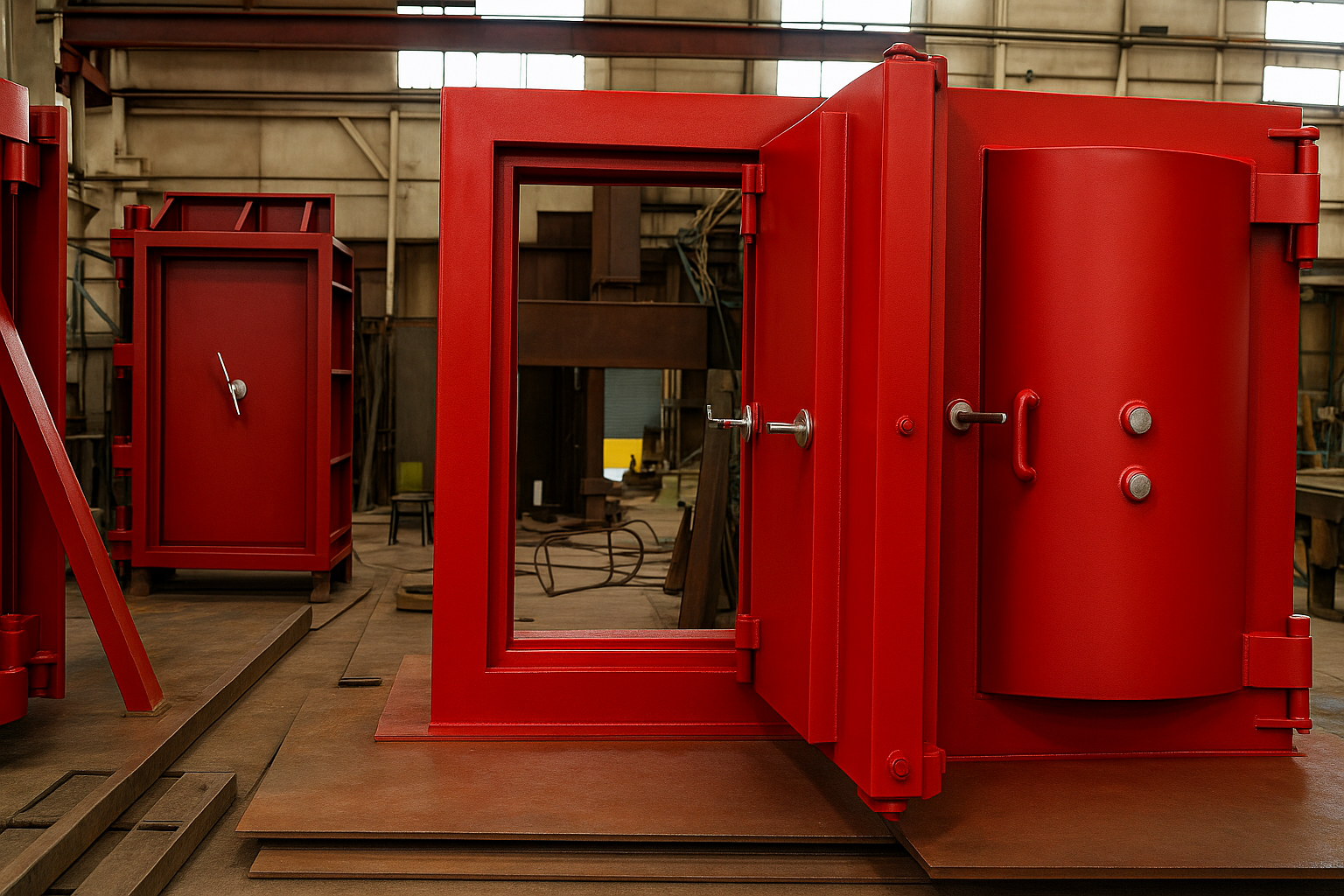

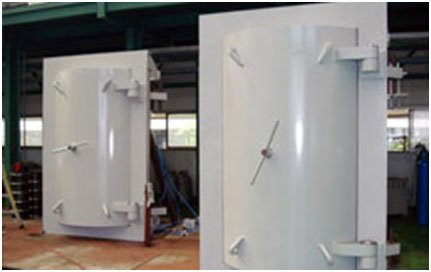

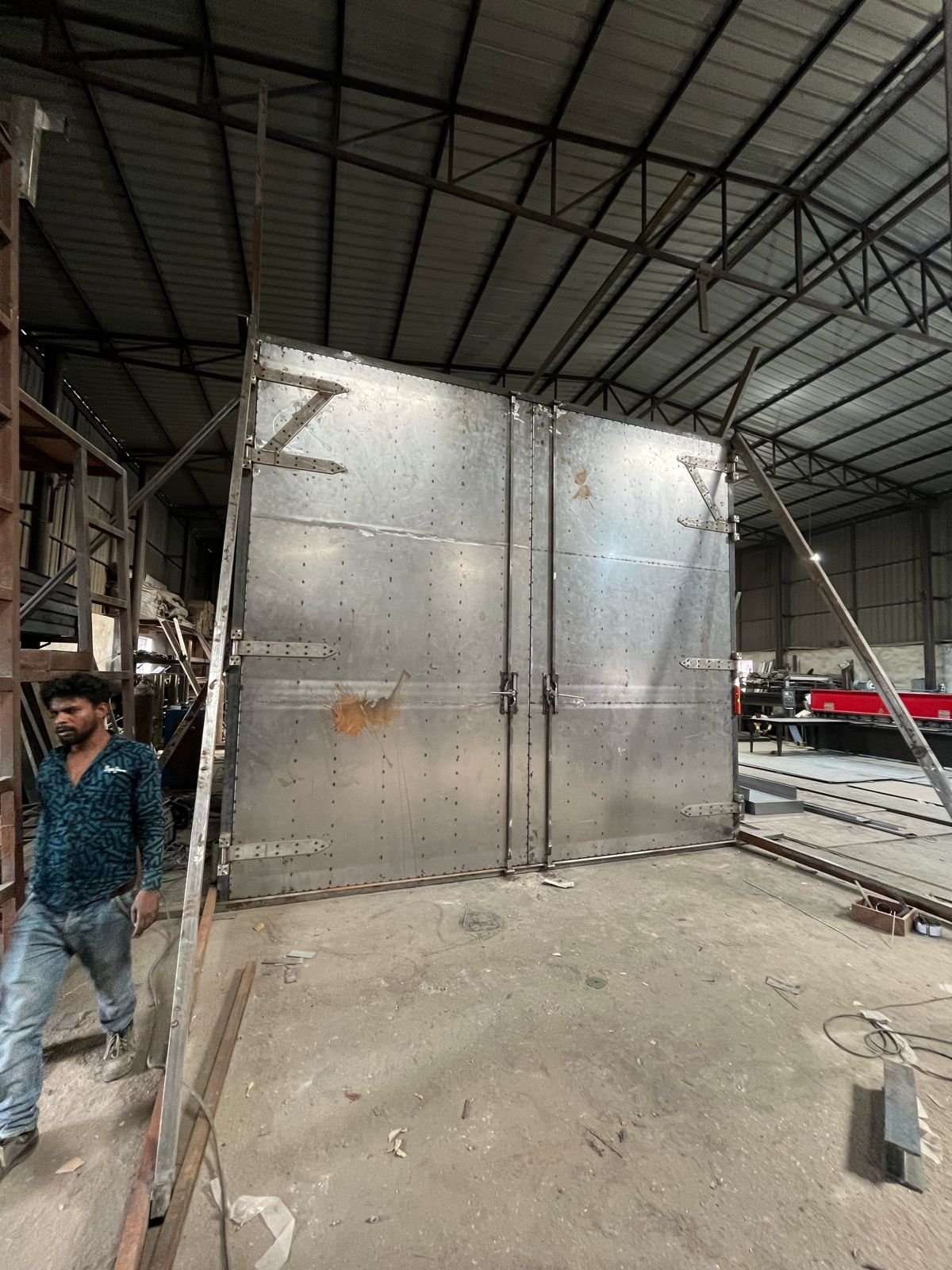

Completed Projects Photos

OUR PRACTICES

MANUFACTURING OF DOORS

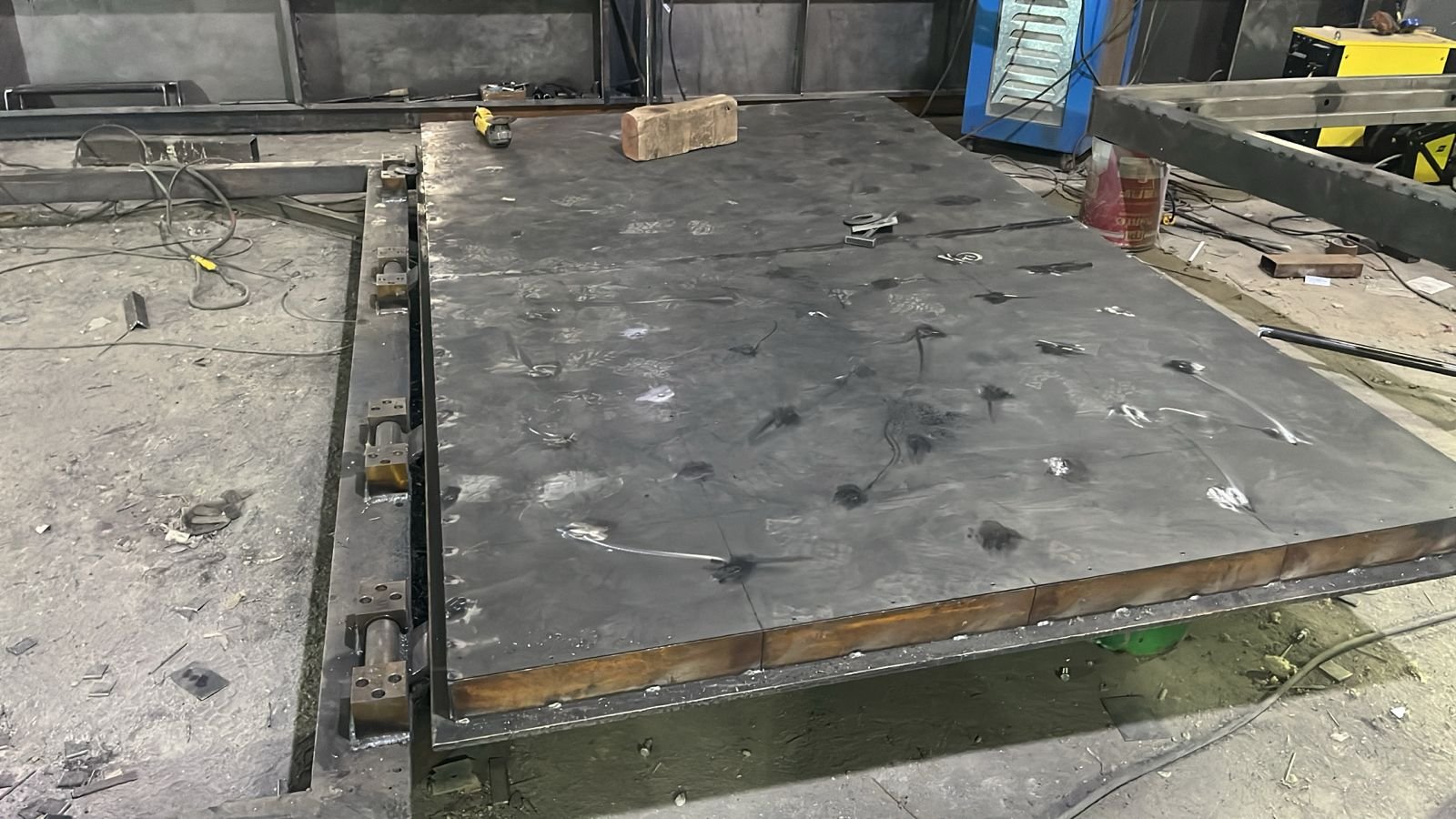

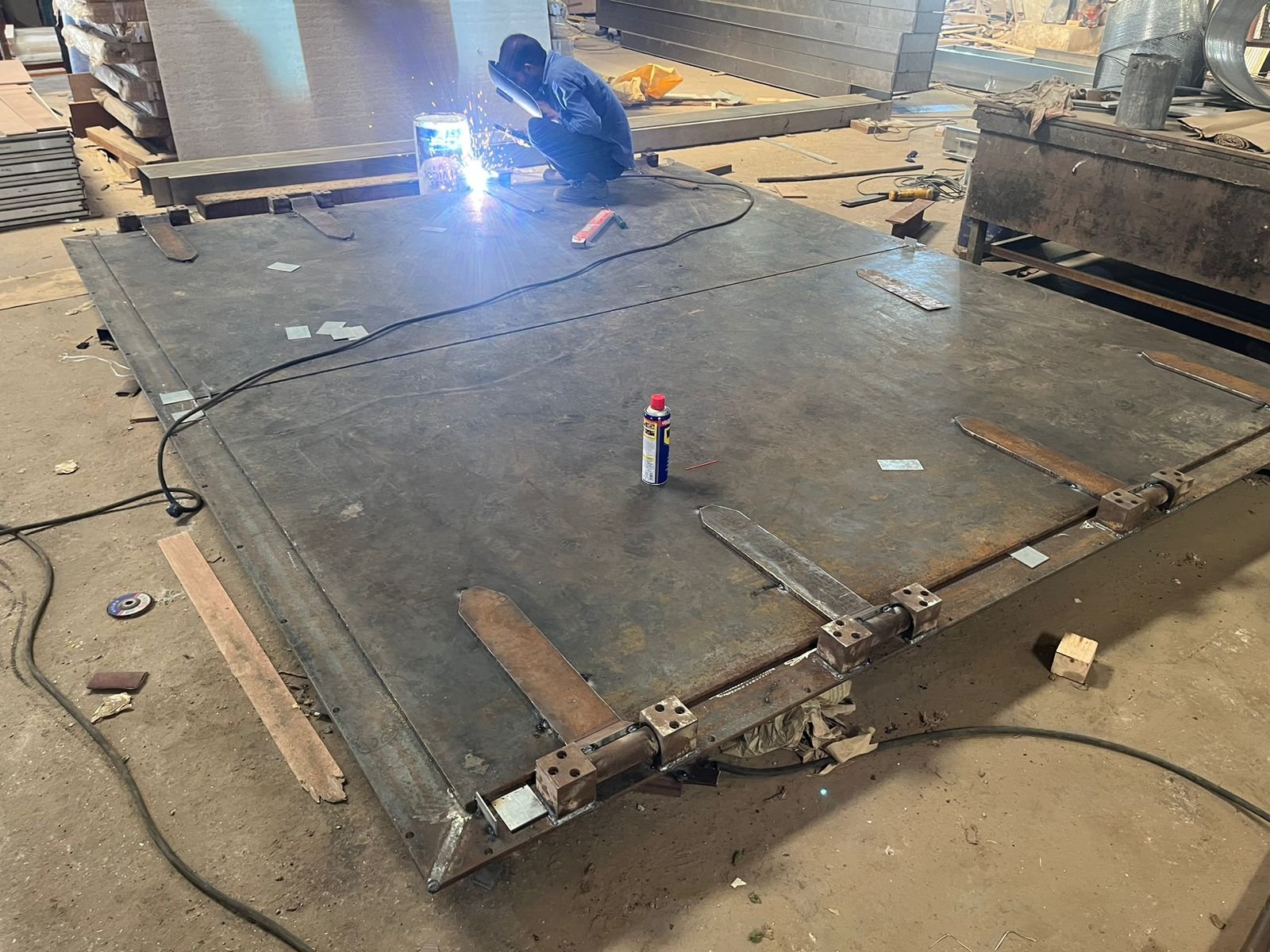

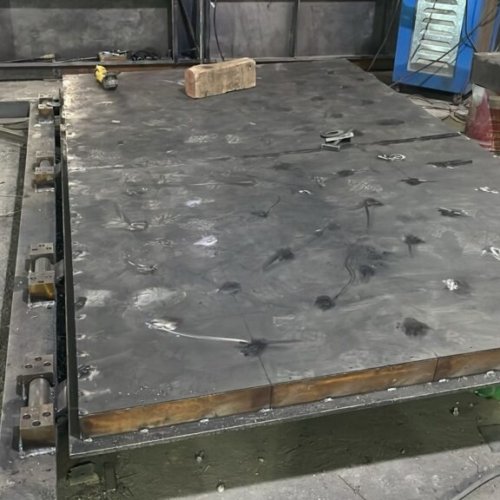

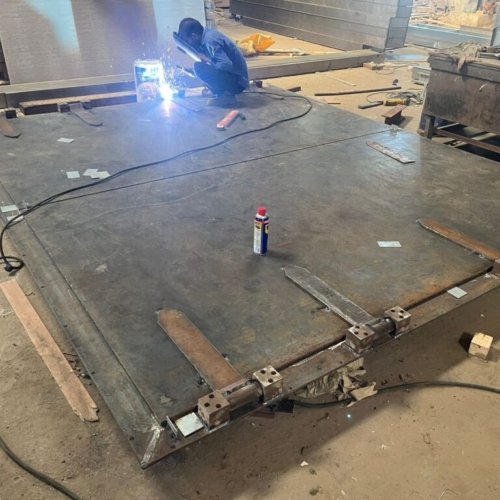

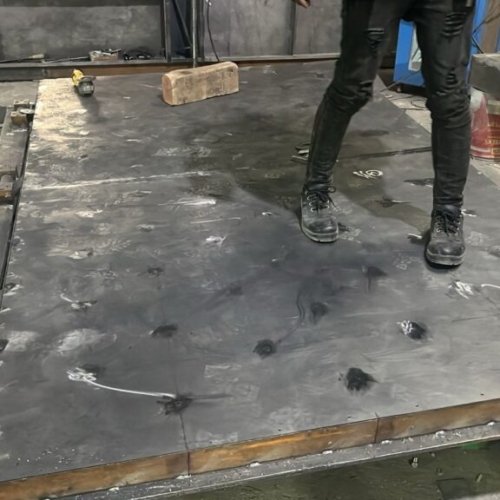

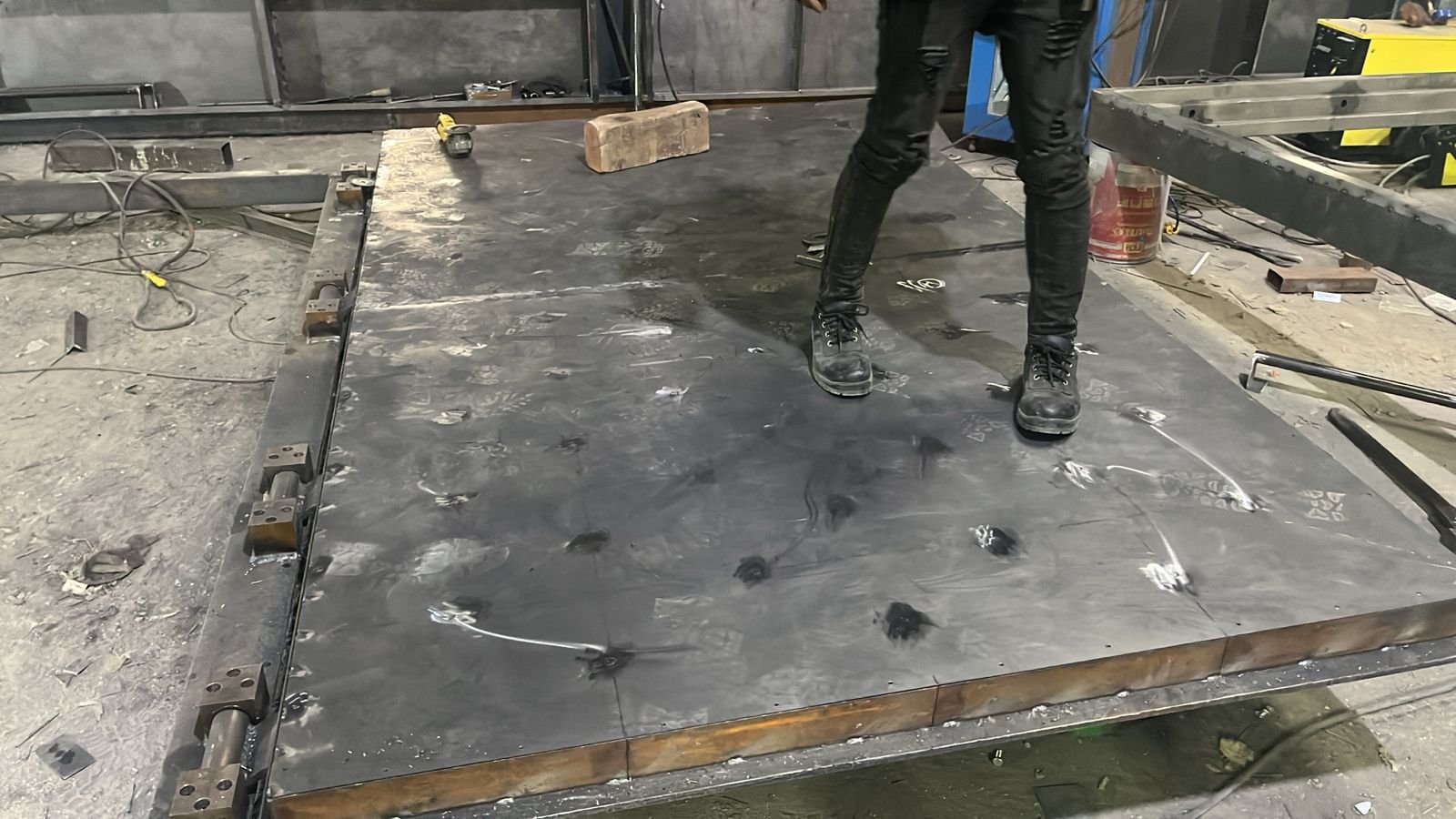

Blast Doors are constructed using steel box section and steel sheet which is fully welded as per the design specification.
The frame is designed for casting into the door opening.
It is recommended that blast door frames are cast into the building fabric. This provides a stronger mounting and
means no drilling, or unnecessary penetrations through the host building wall around the opening.

INSTALLATION OF DOORS

SomNandi Industries products offer a complete or supervised installation service for all of our doors.

STANDARD SPECIFICATION OF DOOR

Blast Resistant Doors are to be designed to resist the effects of a cased 500lb
charge, standard US MK117 Bomb at 100ft standoff. 25psi. In the absence of
further detailed information, this has been interpreted as a standard
general-purpose bomb. Class A fragment penetration.
Total charge weight (H-6/Tritonal) = 734lb (334kgs)
Equivalent TNT = 488lb (222kgs)
Peak Reflected Pressure, Pr = 99.1kPa
Reflected Impulse, Ir = 752.9kPa-ms
Idealised Triangular-decay duration, t = 15.2ms
LPG weapon direct hit
